Medicine Bottle UHF RFID tag · 45×18 mm · Impinj M730 (RT-L153)
RT-L153

Validate this construction on your material with samples before a volume order.

Labels for Different Frequencies

Medicine Bottle UHF RFID tag · 45×18 mm · Impinj M730 (RT-L153)

Sized 45x18 mm to wrap comfortably around plastic medicine bottles, this UHF label pairs a waterproof, oil-resistant PP synthetic face with high-adhesive glue that stays put on curved surfaces. An Impinj M730 chip (customizable) delivers a 128-bit EPC through a 42x16 mm antenna under ISO/IEC 18000-6C for pharmacy-grade traceability.

At a glance

RFID Chip
Impinj M730 (Can be customized)
Label Size
45mm*18mm
Protocol
ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
Memory
128 bits EPC, 0 bit User Memory
Face Material
PP Synthesis Paper
Product Model
RT-L153
Full specifications
Request a quote Request samples

Quote reply within 24 hours

Free samples — freight collect

Pricing matched to your project.

Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.

Supplied by Rivotag through partner production lines.

Technical information

Full specifications

Download specification summary

Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.

Overview

Product ModelRT-L153
RFID ChipImpinj M730 (Can be customized)
Label Size45mm*18mm
Antenna Size42mm*16mm
Face MaterialPP Synthesis Paper
ProtocolISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
Memory128 bits EPC, 0 bit User Memory

Customized services Details

Customizable Label SizeYes
PrintingThermal transfer printing，Silk Screen Printing，and other custom printing.
Data initializationEncoding

Storage Environment Requirements

Operating Temperature/Humidity-0～60℃ / 20%～80% RH
Storage Temperature/Humidity20～30℃ / 20%～60% RH
Shelf Life1 year in anti-static bag at 20～30℃ / 20% ～60% RH
ESD Voltage Immunity2 kV (HBM)
Bending Diameter＞ 50mm
Other application environment requirementsYour environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days.

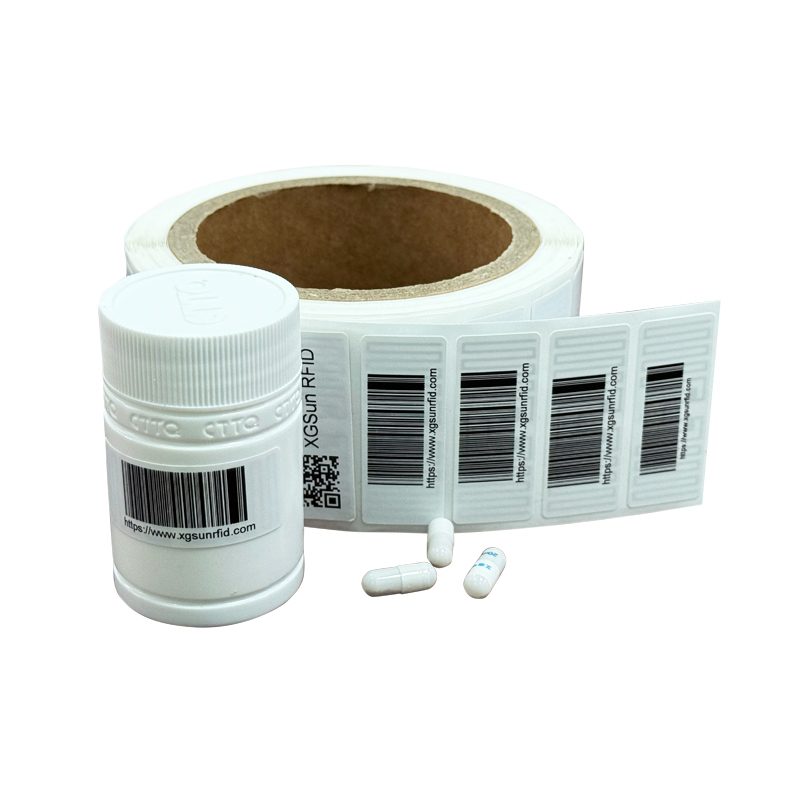

Medication tracking usually fails at the bottle, not the database — smeared print, labels lifting off curved plastic, tags too big for the container. This 45x18 mm UHF label was proportioned for plastic medicine bottles specifically: a waterproof, oil-resistant PP synthetic face, high-adhesive glue for curved surfaces, and print quality that keeps critical information legible.

Each bottle gains a 128-bit EPC from the Impinj M730 chip (alternative chips can be fitted), read through a 42x16 mm antenna under ISO/IEC 18000-6C (EPCglobal Class 1 Gen 2). Whole trays and cabinets can be counted in a single scan, supporting dispensing checks, recalls and expiry management. Operation is rated from 0 to 60 °C.

Ordering & customization

Rivotag supplies this label with customizable size, chip, face material and printing, plus pre-shipment EPC/TID encoding aligned to your coding scheme. Samples are free and ship freight collect in 3-5 working days; production completes 7-15 days after artwork approval on ISO 9001 partner lines, with quotes in 24 hours.

Ordering this product

Sampling, quotations and supply through Rivotag.

How fast will I get a quotation?
We reply to every enquiry within 24 hours with a specific recommendation — chip, antenna, face material and adhesive — plus tiered unit pricing for the quantities you request.
Can I get samples before ordering?
Yes. Samples are free of charge (freight collect) and dispatched within 3–5 working days, so you can verify read performance on your own material before committing to production.
What is the production lead time?
Mass production typically ships in 7–15 days after artwork approval. Our partner factories run 30+ production lines with a combined capacity of about 1.5 billion tags per year.
Are you the manufacturer?
We are an independent supplier, not the factory. Production runs on audited partner lines in China that hold ISO 9001 certification and ARC-certified standard designs; we handle engineering review, sampling, QC and logistics, and remain your single accountable contact.
Can you customize size, chip, printing and encoding?
Yes — size, chip (Impinj, NXP, Alien and more), face material, adhesive, printing and EPC/TID encoding are all customizable. A custom antenna design typically takes 3 working days.
How is quality controlled?
Partner lines run CCD vision inspection on every roll, Voyantic RFID performance testing, and 100% read verification after encoding, under an ISO 9001 quality system. We release shipment only after QC data is confirmed.
