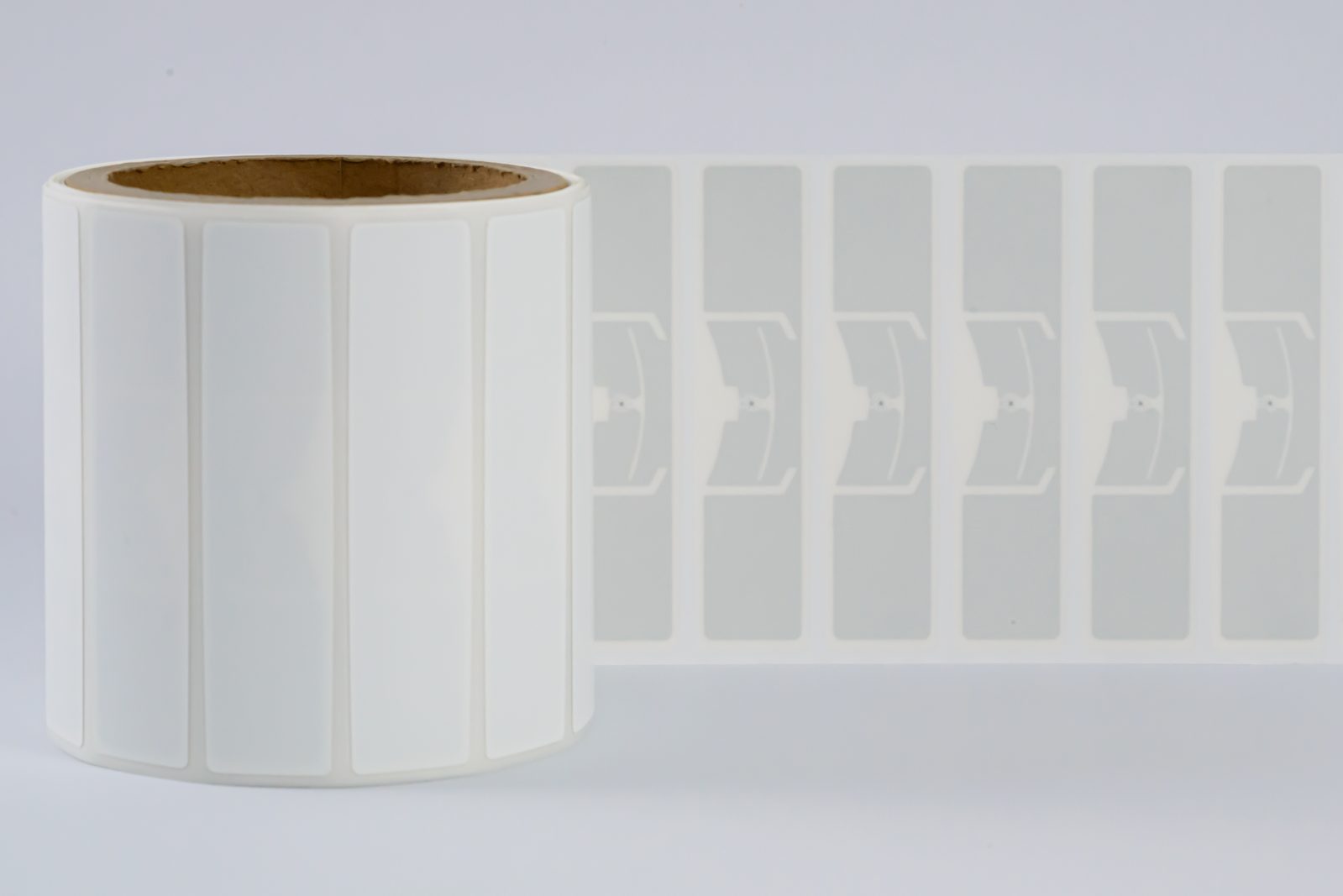

UHF RFID label · 96×23 mm · Alien Higgs 9 (RT-L147)
This slim 96x23 mm UHF label is faced in PP synthetic paper that will not tear away or degrade in damp conditions — for jobs where the label must outlive rough handling. An Alien Higgs 9 chip supplies 96-bit EPC, 48-bit TID and a 688-bit user bank, reading in bulk through a 93x19 mm antenna.
At a glance
- RFID Chip
- Alien H9
- Label Size
- 96mm*23mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 48 bits TID, 96 bits EPC, 688 bits User Memory
- Face Material
- PP Synthesis Paper
- Product Model
- RT-L147
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product Model | RT-L147 |
|---|---|
| RFID Chip | Alien H9 |
| Label Size | 96mm*23mm |
| Antenna Size | 93mm*19mm |
| Face Material | PP Synthesis Paper |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 48 bits TID, 96 bits EPC, 688 bits User Memory |
| Applications | Requirements for waterproofing or labels that cannot be torn off |
| Key Benefits | Fast reading,Multi-reading, Traceability |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
- Applications
- Requirements for waterproofing or labels that cannot be torn off
- Key Benefits
- Fast reading,Multi-reading, Traceability
Peel-and-stick simplicity, industrial staying power. That is the brief this 96x23 mm UHF sticker answers with its PP synthetic paper face — waterproof, ageing-resistant and stubborn against tearing, which makes it the pick for labels that absolutely cannot come off in transit or storage.
An Alien Higgs 9 chip gives the label unusual data depth: alongside the 96-bit EPC and 48-bit TID sits a 688-bit user memory area for inspection records, batch codes or routing hints, all accessible to ISO/IEC 18000-6C (EPCglobal Class 1 Gen 2) readers. The 93x19 mm antenna sustains multi-tag capture, and the label serves from 0 to 60 °C.
Ordering & customization
We quote within 24 hours and ship free samples freight collect in 3-5 working days. Production follows on ISO 9001 partner lines, complete 7-15 days after artwork approval, with chip, dimensions, face material, printing and EPC/TID encoding configured per order.
