UHF high-temperature RFID tag · NXP UCODE 8 (RT-H101)
RT-H101

Validate this construction on your material with samples before a volume order.

High-Temperature Resistant Tags

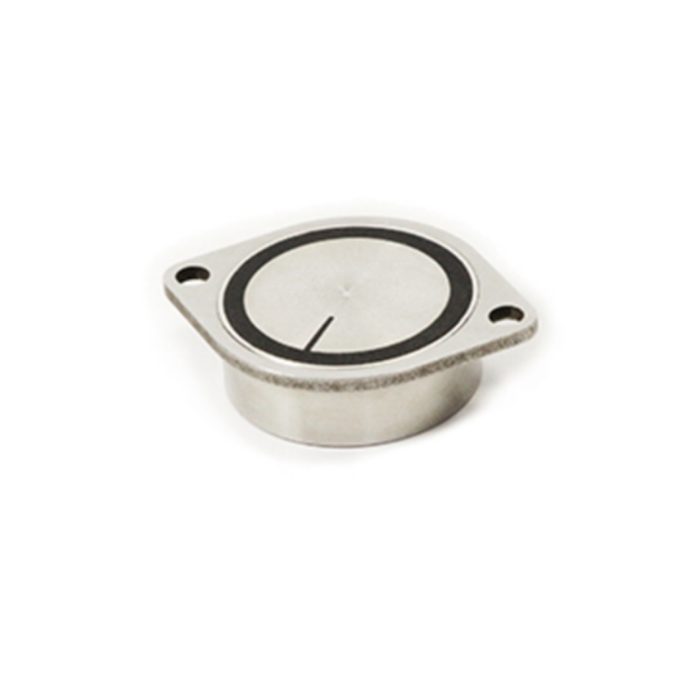

UHF high-temperature RFID tag · NXP UCODE 8 (RT-H101)

An RFID construction for high-temperature applications. Send the operating and storage temperatures, exposure duration, mounting surface and required read task for a specification review.

At a glance

Memory
EPC 96bits(Up to 480bits),User 512bits,TID64bits
RFID Protocol
EPC Class1 Gen2,ISO18000-6C
Frequency
US 902-928MHz,EU 865-868MHz
IC type
Alien Higgs-3/NXP UCODE8
Write Cycles
100,000 times
Functionality
Read/write
Full specifications
Request a quote Request samples

Quote reply within 24 hours

Free samples — freight collect

Pricing matched to your project.

Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.

Supplied by Rivotag through partner production lines.

Technical information

Full specifications

Download specification summary

Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.

Overview

RFID ProtocolEPC Class1 Gen2,ISO18000-6C
FrequencyUS 902-928MHz,EU 865-868MHz
IC typeAlien Higgs-3/NXP UCODE8
MemoryEPC 96bits(Up to 480bits),User 512bits,TID64bits
Write Cycles100,000 times
FunctionalityRead/write
Data Retention50 Years
Applicable SurfaceMetal Surfaces
Read Range(On Metal):(Fix Reader)3.5m(US)902-928MHz,On metal; 3.5m(EU)865-868MHz,On metal;
Read Range(On Metal):(Handheld Reader)2.6m(US)902-928MHz,On metal; 2.6m(EU)865-868MHz,On metal;
Warranty1 Year

Video

SizeDia30mm
Thickness11mm
Material304 stainless steel
ColourGrey
Mounting MethodsScrew,Weld,Embedded
Weight34g
IP RatingIP68
Storage Temperature-50℃ to+260℃(Withstand 300C for 100 hours)
Operation Temperature-40℃ to +150℃
CertificationsReach,RoHs,CE

Overview

Product Model：
Functional Specifications:
RFID Protocol EPC Class1 Gen2,ISO18000-6C
Frequency US 902-928MHz,EU 865-868MHz
IC type Alien Higgs-3/NXP UCODE8
Memory EPC 96bits(Up to 480bits),User 512bits,TID64bits
Write Cycles 100,000 times
Functionality Read/write
Data Retention 50 Years
Applicable Surface Metal Surfaces
Read Range(On Metal):(Fix Reader) 3.5m(US)902-928MHz,On metal; 3.5m(EU)865-868MHz,On metal;
Read Range(On Metal):(Handheld Reader) 2.6m(US)902-928MHz,On metal; 2.6m(EU)865-868MHz,On metal;
Warranty 1 Year
  • untitled-1-5
  • untitled-1-5

Video

x-tinymce/html x-tinymce/html

Physical Specification:
Size Dia30mm
Thickness 11mm
Material 304 stainless steel
Colour Grey
Mounting Methods Screw,Weld,Embedded
Weight 34g
Environmental parameters:
IP Rating IP68
Storage Temperature -50℃ to+260℃(Withstand 300C for 100 hours)
Operation Temperature -40℃ to +150℃
Certifications Reach,RoHs,CE

description2

Ordering this product

Sampling, quotations and supply through Rivotag.

How fast will I get a quotation?
We reply to every enquiry within 24 hours with a specific recommendation — chip, antenna, face material and adhesive — plus tiered unit pricing for the quantities you request.
Can I get samples before ordering?
Yes. Samples are free of charge (freight collect) and dispatched within 3–5 working days, so you can verify read performance on your own material before committing to production.
What is the production lead time?
Mass production typically ships in 7–15 days after artwork approval. Our partner factories run 30+ production lines with a combined capacity of about 1.5 billion tags per year.
Are you the manufacturer?
We are an independent supplier, not the factory. Production runs on audited partner lines in China that hold ISO 9001 certification and ARC-certified standard designs; we handle engineering review, sampling, QC and logistics, and remain your single accountable contact.
Can you customize size, chip, printing and encoding?
Yes — size, chip (Impinj, NXP, Alien and more), face material, adhesive, printing and EPC/TID encoding are all customizable. A custom antenna design typically takes 3 working days.
How is quality controlled?
Partner lines run CCD vision inspection on every roll, Voyantic RFID performance testing, and 100% read verification after encoding, under an ISO 9001 quality system. We release shipment only after QC data is confirmed.
