Validate this construction on your material with samples before a volume order.

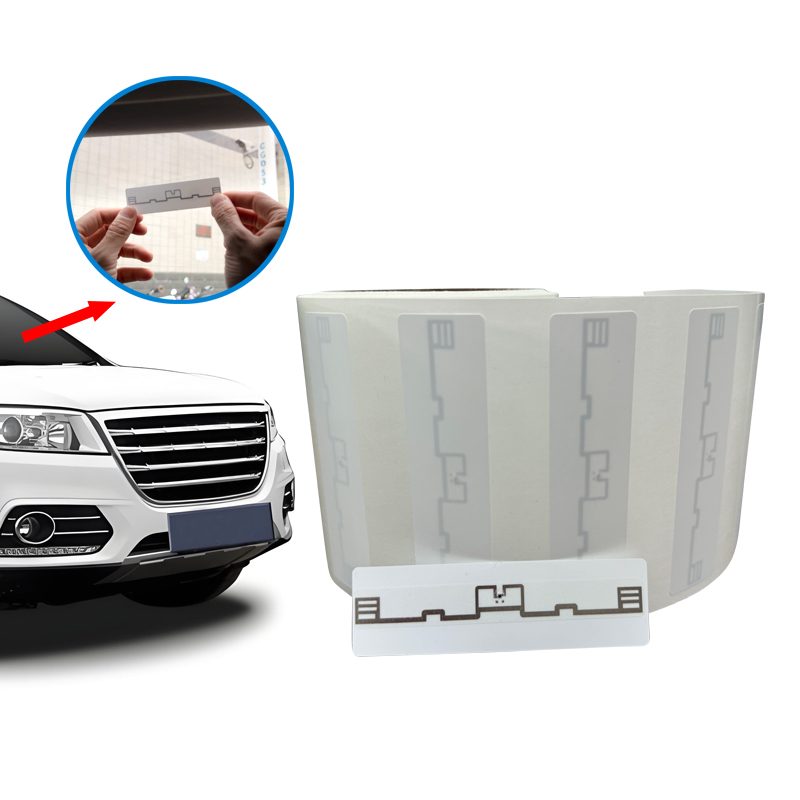

Windshield UHF tamper-evident fragile RFID label · 97×27 mm (RT-F101)
A self-destructing windshield label for vehicle management: peel it from the glass and the 94×8 mm antenna fractures, making the tag unusable on another car. Waterproof white PET facestock and strong adhesive handle outdoor exposure, while the Alien Higgs 4 chip provides a 128-bit EPC, 128 bits of user memory and reads out to roughly 8 meters.
At a glance
- RFID Chip
- Aline Higgs 4(Can be customized)
- Label Size
- 97mm*27mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 128 bits EPC, 128 bits User Memory
- Face Material
- White PET
- Product Model
- RT-F101
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product Model | RT-F101 |
|---|---|
| RFID Chip | Aline Higgs 4(Can be customized) |
| Label Size | 97mm*27mm |
| Antenna Size | 94mm*8mm |
| Face Material | White PET |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 128 bits EPC, 128 bits User Memory |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
A windshield tag only proves something if it cannot be moved to another vehicle. This 97×27 mm fragile label enforces that rule physically: any attempt to peel it from the glass fractures the 94×8 mm antenna, disabling the tag and leaving clear evidence of tampering.
Until then, it works hard. The Alien Higgs 4 chip (alternatives on request) reads out to roughly 8 meters over ISO/IEC 18000-6C / EPCglobal Class 1 Gen 2, carrying a 128-bit EPC and a further 128 bits of user memory for plate numbers or permit data. A waterproof white PET face and high-tack adhesive keep the label stable through outdoor heat, rain and car washes, within a 0–60 °C operating range.
Ordering and customization
We have this tag produced on ISO 9001-certified partner lines and adapt chip, size, face material, printing and EPC/TID encoding to each vehicle-management project. Quotes are returned within 24 hours; free samples (freight collect) leave within 3–5 working days, with mass production 7–15 days after artwork approval.
Ordering this product
Sampling, quotations and supply through Rivotag.
How fast will I get a quotation?
Can I get samples before ordering?
What is the production lead time?
Are you the manufacturer?
Can you customize size, chip, printing and encoding?
How is quality controlled?
Compare related products
Browse the catalogue →
Request a quote
Quote this product for your application.
Tell us your quantity, mounting surface, size limits and read-range target. We’ll confirm a suitable configuration and pricing. Request samples here to test the tag in your own workflow.
- Quote reply within 24 hours
- Free samples — freight collect
- Samples dispatched in 3–5 working days
- Mass production in 7–15 days after artwork approval
Prefer email? peter@proudtek.com
