RT-F104
Validate this construction on your material with samples before a volume order.

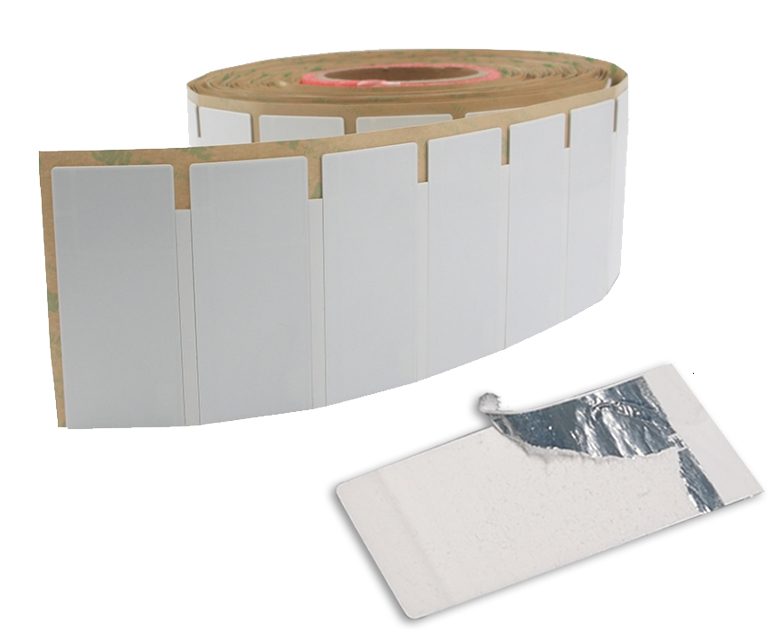

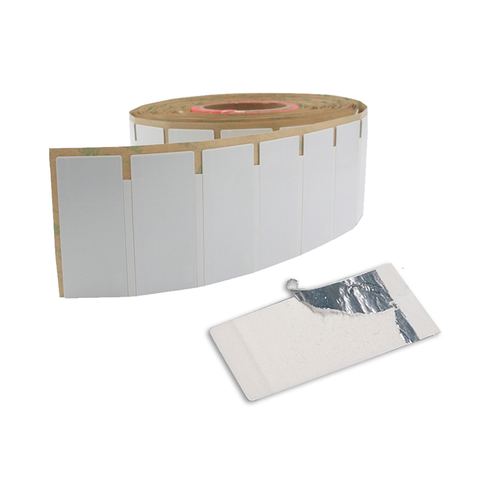

Anti Counterfeit UHF tamper-evident fragile RFID label · 65×35 mm · Impinj Monza R6 (RT-F104)
This 0.75 mm thin flexible label combines two protections: an anti-metal build that reads up to 4 meters on metal surfaces (3 m on non-metal, handheld), and a fragile antenna that is irreversibly damaged by any peeling attempt. The Impinj Monza R6 chip offers a 96-bit EPC, 100,000 rewrites and -40 to 85 °C operation for high-security asset control.
At a glance
- RFID Chip
- Impinj Monza R6
- Label Size
- 65mm*35mm*0.75mm( LxWxT)
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- EPC 96bits；User memory 0 bits
- Face Material
- PET
- Applications
- 1. Indoor asset and office equipment management 2. Valuable equipment, IT equipment assets, electronic product management 3. Tracking management of metal containers and spare parts
Quote reply within 24 hours
Free samples — freight collect
Pricing matched to your project.
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Applications | 1. Indoor asset and office equipment management 2. Valuable equipment, IT equipment assets, electronic product management 3. Tracking management of metal containers and spare parts |
|---|---|
| Key Benefits | 1.The label material is soft and can be attached to the curved metal surface 2. Labels can be applied to various printers 3. Fast reading,Multi-reading, Traceability |
| Product Model | RT-F104 |
| RFID Chip | Impinj Monza R6 |
| Memory | EPC 96bits；User memory 0 bits |
| Label Size | 65mm*35mm*0.75mm( LxWxT) |
| Face Material | PET |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Frequency range | 902-928MHZ |
| Reading distance | 0-4 meters (metal surface, by handheld) |
| Reading distance | 0-3 meters ( non-metallic surface, by handheld) |
| Re-writeable | 100000 times |
| Conformance test | 100% pass Voyantic test |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | print text , barcode and QR code, color printing |
| Printer | Sato SATO CL4NX, Boside TX3R, Zebra ZT410 Silverline, ect. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature | -40～85℃ |
|---|---|
| Storage Temperature | -40～85℃ |

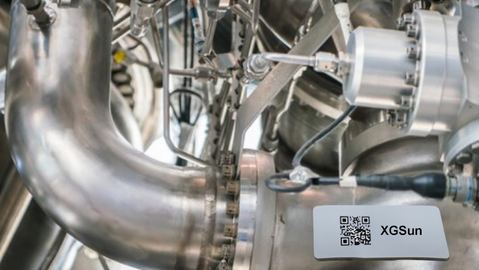

Bind a tag to an asset permanently, or know immediately when someone tried. That is the premise of this fragile on-metal label: flexible enough at 0.75 mm to wrap cylinders, pipes and curved equipment housings, yet built so that any unauthorized peeling wrecks the antenna beyond recovery. The asset and its identity stay locked together.

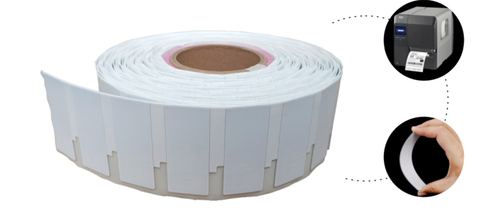

Read performance is genuinely on-metal grade — up to 4 meters on steel with a handheld reader, around 3 meters on non-metallic surfaces — using an Impinj Monza R6 chip at 902–928 MHz under ISO/IEC 18000-6C / EPCglobal Class 1 Gen 2. The 96-bit EPC rewrites up to 100,000 times, batches ship after 100% Voyantic conformance testing, and the PET face prints text, barcodes and QR codes on standard industrial printers such as the SATO CL4NX. Temperature tolerance runs -40 to 85 °C.
Ordering and customization
Supplied from ISO 9001-certified partner lines with size, chip, face material, printing and EPC/TID encoding built to order — quote within 24 hours, free freight-collect samples in 3–5 working days, production 7–15 days after artwork approval.
Ordering this product
Sampling, quotations and supply through Rivotag.
How fast will I get a quotation?
We reply to every enquiry within 24 hours with a specific recommendation — chip, antenna, face material and adhesive — plus tiered unit pricing for the quantities you request.
Can I get samples before ordering?
Yes. Samples are free of charge (freight collect) and dispatched within 3–5 working days, so you can verify read performance on your own material before committing to production.
What is the production lead time?
Mass production typically ships in 7–15 days after artwork approval. Our partner factories run 30+ production lines with a combined capacity of about 1.5 billion tags per year.
Are you the manufacturer?
We are an independent supplier, not the factory. Production runs on audited partner lines in China that hold ISO 9001 certification and ARC-certified standard designs; we handle engineering review, sampling, QC and logistics, and remain your single accountable contact.
Can you customize size, chip, printing and encoding?
Yes — size, chip (Impinj, NXP, Alien and more), face material, adhesive, printing and EPC/TID encoding are all customizable. A custom antenna design typically takes 3 working days.
How is quality controlled?
Partner lines run CCD vision inspection on every roll, Voyantic RFID performance testing, and 100% read verification after encoding, under an ISO 9001 quality system. We release shipment only after QC data is confirmed.
