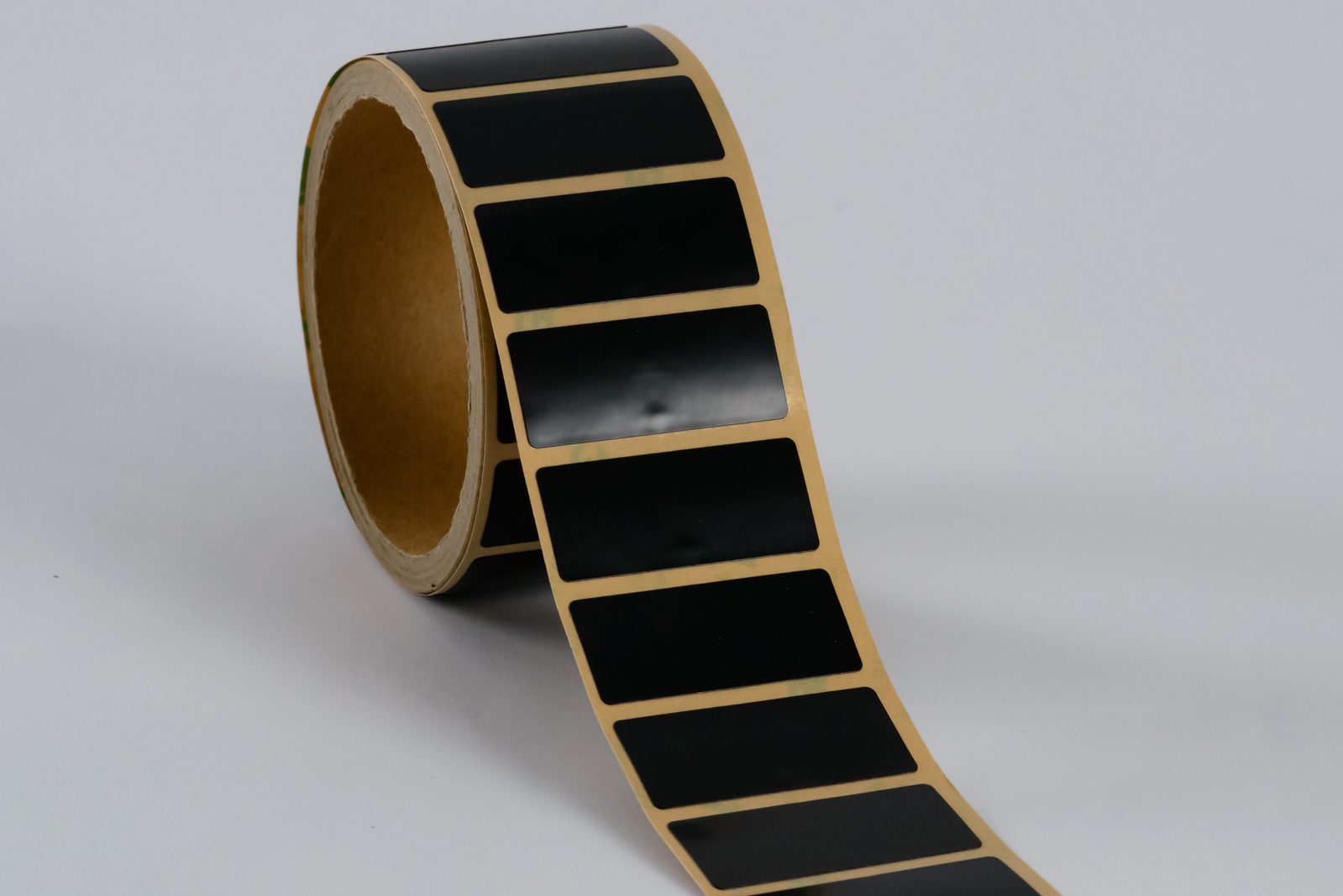

3M Adhesive UHF RFID label · 65×35 mm · NXP UCODE 8 (RT-L135)
When ordinary label glue gives up — dusty racking, textured plastics, harsh service conditions — this 65x35 mm UHF label holds on with 3M adhesive under a durable PET face. The NXP UCODE 8 chip and 50x30 mm antenna give it a 128-bit EPC readable in bulk under ISO/IEC 18000-6C.
At a glance
- RFID Chip
- NXP UCODE 8
- Label Size
- 65mm*35mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 48 bits TID, 128 bits EPC, 0 bit User Memory
- Face Material
- PET
- Product Model
- RT-L135
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Product Description
| Product Model | RT-L135 |
|---|---|
| RFID Chip | NXP UCODE 8 |
| Label Size | 65mm*35mm |
| Antenna Size | 50mm*30mm |
| Face Material | PET |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 48 bits TID, 128 bits EPC, 0 bit User Memory |
| Applications | Strong stickiness or harsh environment |
| Key Benefits | Fast reading,Multi-reading, Traceability |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
- Applications
- Strong stickiness or harsh environment
- Key Benefits
- Fast reading,Multi-reading, Traceability
An RFID label that falls off is worse than no label at all — the data walks away from the asset. This 65x35 mm UHF label attacks that failure point directly, pairing a hard-wearing PET face with 3M adhesive chosen for strong grip on difficult surfaces and harsh service environments.
Radio performance comes from an NXP UCODE 8 chip on a 50x30 mm antenna: 128-bit EPC, 48-bit TID and full ISO/IEC 18000-6C (EPCglobal Class 1 Gen 2) compatibility, so it drops straight into standard UHF reading infrastructure. The PET face resists scuffing, takes thermal-transfer or silk-screen print, and the finished label operates from 0 to 60 °C.
Ordering & customization
Tell us the surface it has to grip and we will match the construction — chip, size, face material, printing and EPC/TID encoding are all customizable, with production on ISO 9001 partner lines. Free samples dispatch freight collect in 3-5 working days, volume runs finish 7-15 days after artwork approval, and quotes arrive within 24 hours.
