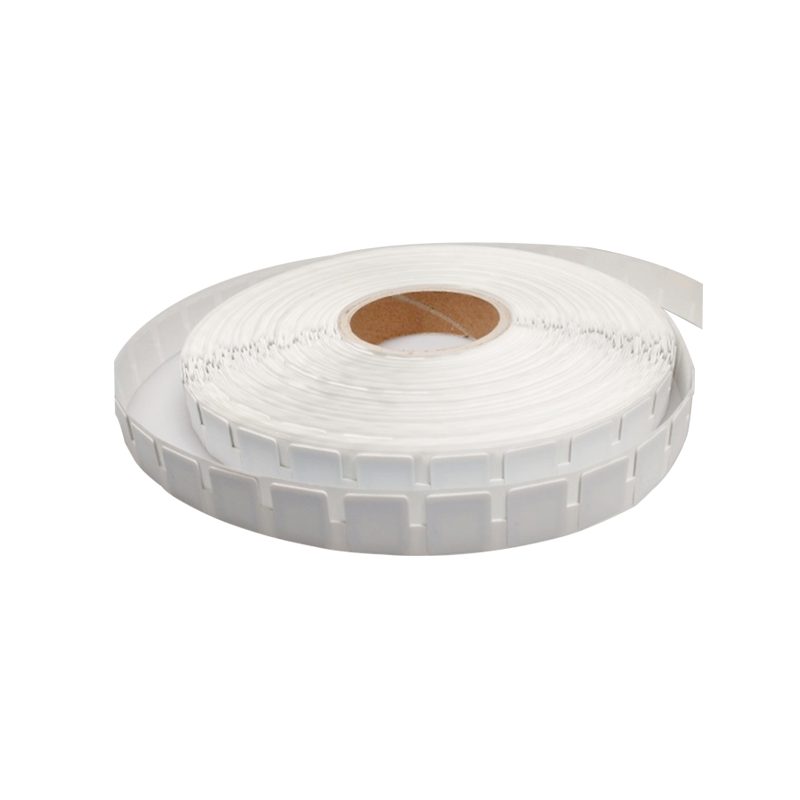

UHF flexible on-metal RFID label · 20×20 mm · Impinj Monza R6 (RT-M109)
A 20 mm square anti-metal label only 0.85 mm thick, supplied for assets where space is strictly limited — IT equipment, tools, instruments and office hardware. Typical handheld read range is within 0.5 meters on metal or non-metal surfaces, and the Impinj Monza R6 chip rewrites 100,000 times with 100% Voyantic-tested batches; operation spans -40 to 85 °C.
At a glance
- RFID Chip
- Impinj Monza R6
- Label Size
- 20mm*20mm*0.85mm( LxWxT)
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- EPC 96bits；User memory 0 bits
- Face Material
- PET
- Frequency range
- 902-928MHZ
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| RFID Chip | Impinj Monza R6 |
|---|---|
| Memory | EPC 96bits；User memory 0 bits |
| Label Size | 20mm*20mm*0.85mm( LxWxT) |
| Face Material | PET |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Frequency range | 902-928MHZ |
| Reading distance | 0-0.5 meters (metal surface, by handheld) |
| Reading distance | 0-0.5 meters ( non-metallic surface, by handheld) |
| Re-writeable | 100000 times |
| Conformance test | 100% pass Voyantic test |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | print text , barcode and QR code, color printing |
| Printer | Sato SATO CL4NX, Boside TX3R, Zebra ZT410 Silverline, ect. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature | -40～85℃ |
|---|---|
| Storage Temperature | -40～85℃ |
Short-range reading is sometimes exactly the point. On a crowded equipment rack, a tag that answers only within half a meter identifies the asset directly in front of the technician — no stray reads from the shelf above. This 20×20 mm flexible on-metal label behaves that way by design, with handheld read range inside 0.5 meters on both metal and non-metal surfaces; certain high-performance builds stretch to 3–5 meters with high-power readers.

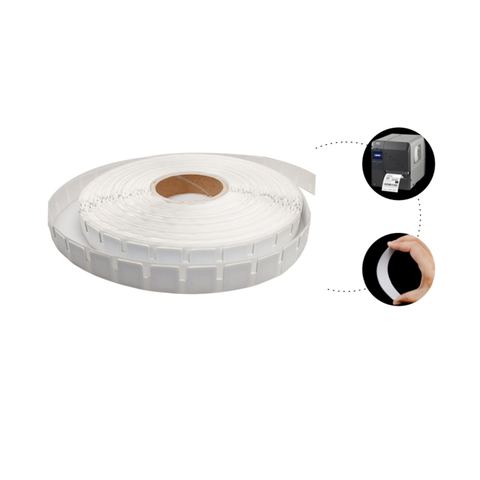

At 0.85 mm thick and soft enough to follow curved metal, it tucks into confined or concealed positions on IT hardware, tools, instruments and office equipment. The Impinj Monza R6 chip carries a 96-bit EPC at 902–928 MHz under ISO/IEC 18000-6C, rewrites up to 100,000 times and ships from 100% Voyantic-tested batches; the PET face prints text, barcodes and QR codes, and operation runs -40 to 85 °C.
Ordering and customization
We supply it from ISO 9001 partner lines with size, chip, face material, printing and EPC/TID encoding adjusted per asset register — quotes within 24 hours, free freight-collect samples in 3–5 working days, production 7–15 days after artwork approval.
