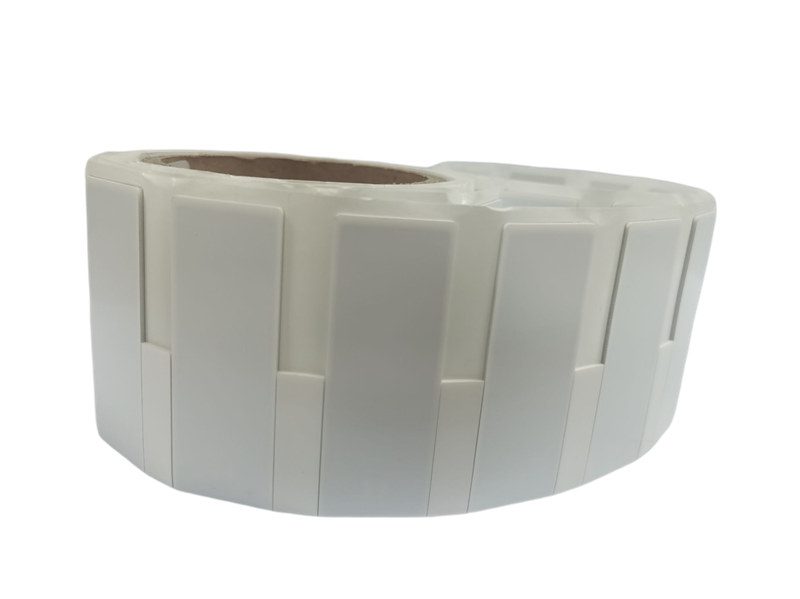

Asset UHF flexible on-metal RFID label · 70×25 mm (RT-M104)
Asset UHF flexible on-metal RFID label, 70×25 mm format. Confirm the selected chip, encoding and application requirements against the detailed specification before ordering. Chip availability and memory depend on the approved configuration.
At a glance
- RFID Chip
- NXP Ucode8, NXP Ucode9, Moza M730, Moza M750 and more.
- Tag Size
- 70mm*25mm*1.26mm
- Operating Frequency
- 860~960MHz
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- Chip dependent; confirm EPC, TID and user memory for the selected option
- Face Material
- White PET
Quote reply within 24 hours
Free samples — freight collect
Pricing matched to your project.
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product | Anti Metal 7025 |
|---|---|
| RFID Chip | NXP Ucode8, NXP Ucode9, Moza M730, Moza M750 and more. |
| Tag Size | 70mm*25mm*1.26mm |
| Application | RFID Anti-metal Interference Tag |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Operating Frequency | 860~960MHz |
| Memory | Chip dependent; confirm EPC, TID and user memory for the selected option |
| Application overview | RFID tags are used in environments where metal is present. |
| Range of Application | Logistics Management, Industrial Management |
Product Details
| Product Type | RFID Anti Metal Tag |
|---|---|
| Chip Material | Silicon Wafer |
| Face Material | White PET |
| UHF Antenna | AL+PET |
| MOQ | 1,000 Pcs |
| Samples | 15 Pcs for free samples |
| Printing | Thermal transfer printing |
Packing Details
| Packing specification | Esd bag vacuum packing (Other Custom Packing specification) |
|---|---|
| Quantity For Per Roll | 500 pcs/roll |
| carton size | 445*445*345mm |
| Unwinding Direction | Label face out |
| Core Inner Diameter | 3 inches |
Storage Environment Requirements
| Operating Temperature/Humidity | -40°C to + 85°C / 20%～60% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | The ribbon you choose to print will affect the design of label’s surface material. The temperature of your using environment will affect our design of adhesive material of labels. Please tell your special needs to your customer service in advance, and we will complete the design of customized anti metal tags for you within two working days. |
Custom Service
| Custom Chip | NXP Ucode8, NXP Ucode9, Moza M730, Moza M750 and more. |
|---|---|
| Custom Size | 65*35mm, 100*40mm, 65*5mm, 70*25mm and more. |
This 70×25×1.26 mm flexible construction is intended for metal asset identification. Compare flexible on-metal RFID labels and confirm the selected chip, memory and mounting conditions before ordering.
Overview
| Product： | Anti Metal 7025 |
|---|---|
| RFID Chip: | NXP Ucode8, NXP Ucode9, Moza M730, Moza M750 and more. |
| Tag Size： | 70mm25mm1.26mm |
| Application： | RFID Anti-metal Interference Tag |
| Protocol： | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Operating Frequency： | 860~960MHz |
| Memory： | Chip dependent; confirm EPC, TID and user memory for the selected option |
| Application overview： | RFID tags are used in environments where metal is present. |
| Range of Application | Logistics Management, Industrial Management |
Product Details
| Product Type: | RFID Anti Metal Tag |
|---|---|
| Chip Material: | Silicon Wafer |
| Face Material: | White PET |
| UHF Antenna: | AL+PET |
| MOQ: | 1,000 Pcs |
| Samples: | 15 Pcs for free samples |
| Printing: | Thermal transfer printing |
Packing Details
| Packing specification: | Esd bag vacuum packing (Other Custom Packing specification) |
|---|---|
| Quantity For Per Roll: | 500 pcs/roll |
| carton size： | 445445345mm |
| Unwinding Direction: | Label face out |
| Core Inner Diameter: | 3 inches |
Storage Environment Requirements
| Operating Temperature/Humidity： | -40°C to + 85°C / 20%～60% RH |
|---|---|
| Storage Temperature/Humidity： | 20～30℃ / 20%～60% RH |
| Shelf Life： | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity： | 2 kV (HBM) |
| Bending Diameter： | ＞ 50mm |
| Other application environment requirements: | The ribbon you choose to print will affect the design of label’s surface material. The temperature of your using environment will affect our design of adhesive material of labels. Please tell your special needs to your customer service in advance, and we will complete the design of customized anti metal tags for you within two working days. |

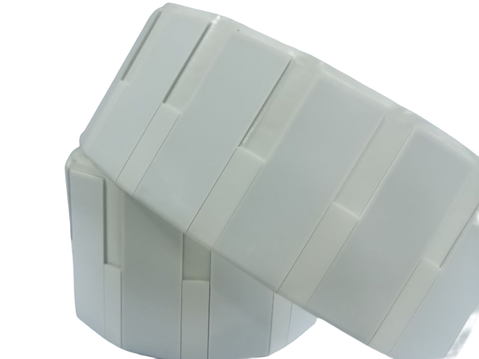

Flexible Metal Resistant RFID Tag
The anti-metal RFID tag is based on RFID electronic tag with a layer of metal resistant material. This material can prevent the label from failing after being attached to a metal object. The anti-metal material is a special anti-magnetic wave absorbing material. The electronic tag encapsulated by the material technically solves the problem that the electronic tag cannot be attached to the metal surface.
Application: Widely used in inspection of power equipment, hydraulic gas tank management, vehicle management, elevator management, household equipment management, etc.
Product Application Guide
In order to reduce your time and cost in RFID program’ s Encoding and printing, our team launched RFID label purchasing & data initialization service for customers. We will provide you with RFID label production, label printing, EPC compilation & EPC coding one-station service, with the most experienced team & most efficient equipment.
We can also provide you the high quality anti metal tags according to your requirements. If you encounter any problems in the process of data initialization, please contact our after-sales team anytime, we will be waiting for your call 7*24 hours.
RFID Label Application
Custom Service
| Custom Chip： | NXP Ucode8, NXP Ucode9, Moza M730, Moza M750 and more. |
|---|---|
| Custom Size | 6535mm, 10040mm, 655mm, 7025mm and more. |
Technical & process support
Product Support
ꔷ RFID Flexible Adhesive Label ꔷ Anti-metal Tag ꔷ RFID Woven Label ꔷ RFID Hangtag ꔷ RFID PVC card ꔷ NFC Tags
Production Process
ꔷ Cutting & Transfer ꔷ Die cutting ꔷ Off-pitch Label ꔷ Coating Interval ꔷ Fragile Antenna
Data Initialization Service
ꔷ Variable Printing ꔷ Variable Code Writting ꔷ UV Printing ꔷ Thermal Transfer Printing ꔷ Thermal Paper Printing
Customized Materials
ꔷ Art Paper ꔷ PET ꔷ Thermal paper ꔷ Water glue ꔷ Oil glue ꔷ Hot melt adhesiveApplication fields:
- Indoor asset and office equipment management
- Valuable equipment, IT equipment assets, electronic product management
- Tracking management of metal containers and spare parts Main advantages: 1.The product is 100% tested by the European imported label consistency test system to ensure the stability during use
- The label material is soft and can be attached to the curved surface
- Labels can be applied to various printers
