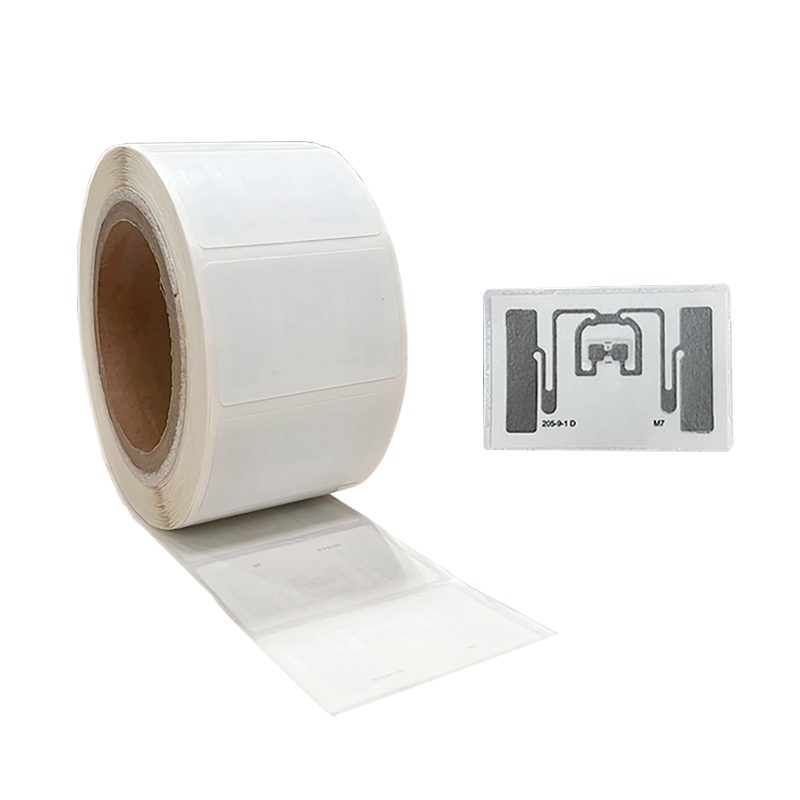

ARC-certified UHF RFID label · 60×40 mm · Impinj M730 (RT-A104)
An ARC-certified 60x40 mm UHF RFID label for apparel retail, marked approved for Walmart use. The Impinj M730 chip holds a 128-bit EPC and 48-bit TID under ISO/IEC 18000-6C, and the 50x30 mm antenna keeps read rates high on dense clothing racks. Face options include art paper, PET and PP synthetic.
At a glance
- RFID Chip
- Impinj M730
- Label Size
- 60mm*40mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 48 bits TID, 128 bits EPC, 0 bit User Memory
- Face Material
- Art-Paper, PET，PP synthetic paper & Other Customize Face Material
- Product Model
- RT-A104
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Product Description
| Product Model | RT-A104 |
|---|---|
| RFID Chip | Impinj M730 |
| Label Size | 60mm*40mm |
| Antenna Size | 50mm*30mm |
| Face Material | Art-Paper, PET，PP synthetic paper & Other Customize Face Material |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 48 bits TID, 128 bits EPC, 0 bit User Memory |
| Approved By Walmart | YES |
| Applications | Supermarkets, Apparel&Footwear, Retail,General purpose |
| Key Benefits | Fast reading,Multi-reading, Traceability |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
- Approved By Walmart
- YES
- Applications
- Supermarkets, Apparel&Footwear, Retail,General purpose
- Key Benefits
- Fast reading,Multi-reading, Traceability
When a retail mandate specifies ARC-certified inlays, tag selection stops being a matter of taste. This 60x40 mm apparel label meets that bar: it is ARC-certified, listed as approved for Walmart tagging, and built on the Impinj M730 — a chip widely chosen for item-level retail thanks to its strong sensitivity in dense tag populations.
On the technical side, the label offers a 128-bit EPC, 48-bit TID and EPCglobal Class 1 Gen 2 compliance through a 50x30 mm antenna, operating from 0 to 60 °C. Supplied faces cover art paper for economical printed price tickets, plus PET and PP synthetic paper for garments moving through humid or abrasive supply chains. Thermal transfer, silk screen and other custom printing are supported, as is pre-shipment EPC/TID encoding to your data plan.
Where it fits
Apparel and footwear source tagging, supermarket merchandise and any retail rollout that audits tag performance. We answer quote requests within 24 hours, send free samples freight collect within 3-5 working days, and complete mass production on ISO 9001 partner lines 7-15 days after artwork approval, with chip, size and face material customizable.
Ordering this product
Sampling, quotations and supply through Rivotag.
How fast will I get a quotation?
Can I get samples before ordering?
What is the production lead time?
Are you the manufacturer?
Can you customize size, chip, printing and encoding?
How is quality controlled?
