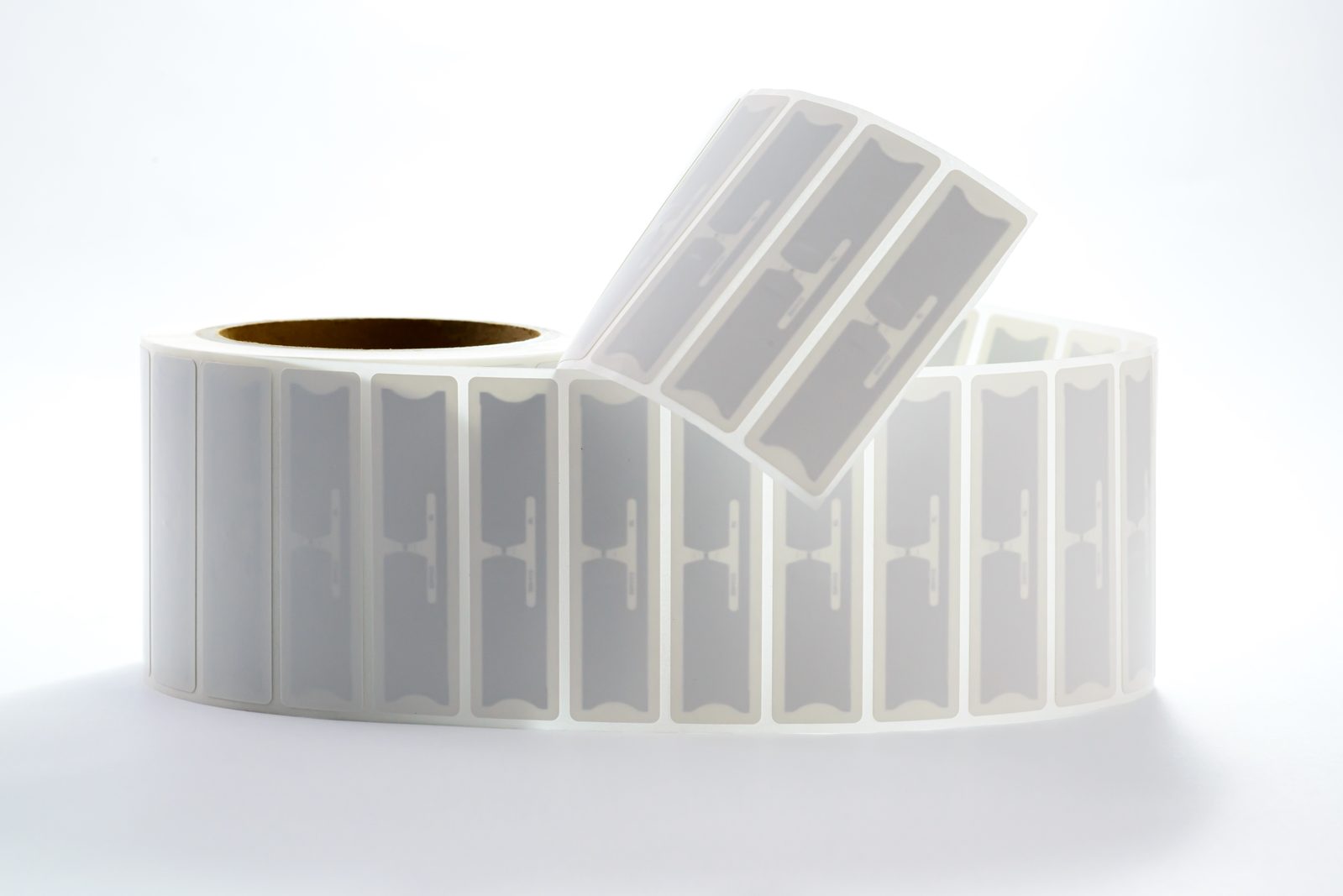

ARC-certified UHF RFID label · 76×20 mm (RT-A105)
An ARC-certified 76x20 mm UHF strip label whose Impinj M750 chip and 70x14.5 mm antenna have documented read performance behind them — reassurance for apparel, footwear, retail and healthcare rollouts. It offers a 96-bit EPC and 48-bit TID over EPCglobal Class 1 Gen 2, with art paper, PET or PP synthetic faces.
At a glance
- RFID Chip
- Impinj M750
- Label Size
- 76mm*20mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 48 bits TID, 96 bits EPC, 0 bit User Memory
- Face Material
- Art-Paper, PET，PP synthetic paper & Other Customize Face Material
- Product Model
- RT-A105
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Product Description
| Product Model | RT-A105 |
|---|---|
| RFID Chip | Impinj M750 |
| Label Size | 76mm*20mm |
| Antenna Size | 70.0mm*14.5mm |
| Face Material | Art-Paper, PET，PP synthetic paper & Other Customize Face Material |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 48 bits TID, 96 bits EPC, 0 bit User Memory |
| Applications | Apparel&Footwear, Retail, Healthcare,General purpose |
| Key Benefits | Fast reading,Multi-reading, Traceability |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
- Applications
- Apparel&Footwear, Retail, Healthcare,General purpose
- Key Benefits
- Fast reading,Multi-reading, Traceability
Certification takes the argument out of tag selection. Because this 76x20 mm label is ARC-certified, its read performance has been independently benchmarked — the kind of evidence sourcing teams lean on when a retail or brand program specifies minimum inlay standards rather than one part number.
The hardware behind the paperwork: an Impinj M750 chip on a 70x14.5 mm antenna, ISO/IEC 18000-6C (EPCglobal Class 1 Gen 2) compliance, and memory arranged as a 96-bit EPC with 48-bit TID. The slim strip shape favours shoe boxes, folded apparel packaging and healthcare items, supplied in art paper, PET or PP synthetic faces. It operates from 0 to 60 °C and keeps best in storage at 20-30 °C.
Ordering & customization
Rivotag supplies this label with size, chip, face and printing tuned per project, and EPC/TID encoding preloaded on request. Samples are free — freight collect — and leave within 3-5 working days; mass production runs 7-15 days after artwork approval on ISO 9001 partner lines. Quotes come back within 24 hours.
