RT-L148
Foldable UHF RFID label · 50×15 mm · NXP UCODE 8
- Chip
- NXP UCODE 8 and Other customized chips
- Size
- 50mm*15mm
RT-L131
Validate this construction on your material with samples before a volume order.

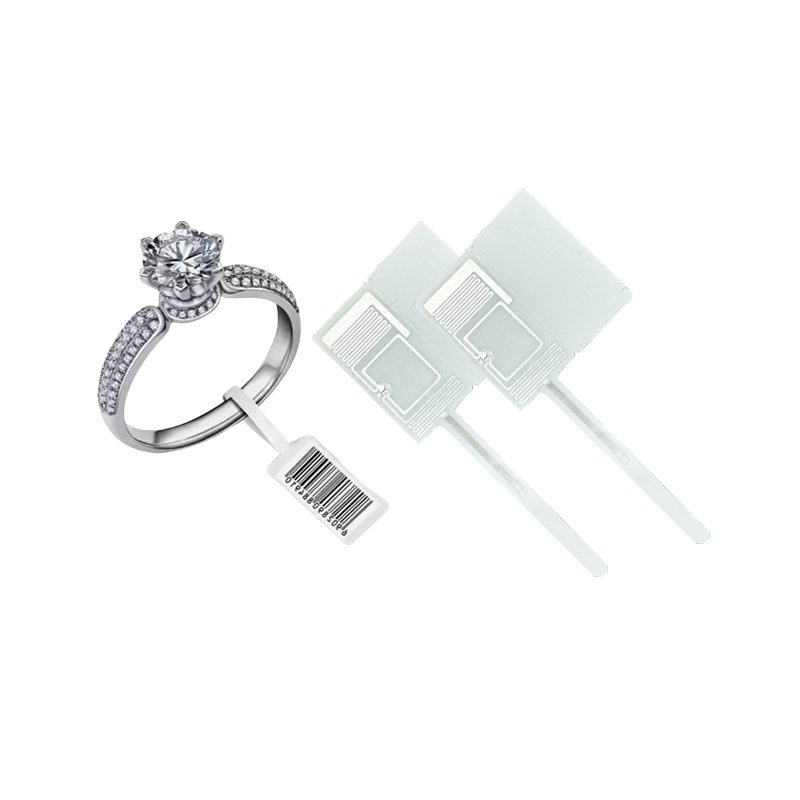

Jewelry UHF RFID label · 66×26 mm · NXP UCODE 9 (RT-L131)
A slender 66x26 mm UHF label made for jewelry, glasses and luxury goods management, with a wipe-clean white PET face that suits fine-detail printing. The NXP UCODE 9xe chip stores a 128-bit EPC plus 32 bits of user memory, answering readers over ISO/IEC 18000-6C through its 42x11 mm antenna.
At a glance
- RFID Chip
- NXP UCODE 9xe
- Label Size
- 66mm*26mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 128 bits EPC, 32 bit User Memory
- Face Material
- White PET
- Product Model
- RT-L131
Quote reply within 24 hours
Free samples — freight collect
Pricing matched to your project.
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product Model | RT-L131 |
|---|---|
| RFID Chip | NXP UCODE 9xe |
| Label Size | 66mm*26mm |
| Antenna Size | 42mm*11mm |
| Face Material | White PET |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 128 bits EPC, 32 bit User Memory |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
- Applications
- Jewelry management, glasses management, luxury goods management
- Key Benefits
- Fast reading,Multi-reading, Traceability
See it in action
Counting a jewelry case by hand means opening it — and every open lid is a security question. Tag each piece with this 66x26 mm UHF label instead, and the whole display reconciles from outside the glass. The narrow format wraps neatly around ring shanks and bracelet loops, while its white PET face carries crisp product codes, prices and barcodes.
An NXP UCODE 9xe chip does the talking, holding a 128-bit EPC and 32 bits of user memory over ISO/IEC 18000-6C (EPCglobal Class 1 Gen 2). Reads pass through a compact 42x11 mm antenna, staying quick even across loaded display trays, and the label tolerates 0 to 60 °C in service.
Ordering & customization
The same construction suits eyewear and other luxury goods as readily as jewelry. Rivotag returns quotes within 24 hours, sends free samples freight collect in 3-5 working days, and delivers production quantities 7-15 days after artwork approval from ISO 9001 partner lines — with chip, size, face material, printing and EPC/TID encoding configured to your spec.
Ordering this product
Sampling, quotations and supply through Rivotag.
How fast will I get a quotation?
We reply to every enquiry within 24 hours with a specific recommendation — chip, antenna, face material and adhesive — plus tiered unit pricing for the quantities you request.
Can I get samples before ordering?
Yes. Samples are free of charge (freight collect) and dispatched within 3–5 working days, so you can verify read performance on your own material before committing to production.
What is the production lead time?
Mass production typically ships in 7–15 days after artwork approval. Our partner factories run 30+ production lines with a combined capacity of about 1.5 billion tags per year.
Are you the manufacturer?
We are an independent supplier, not the factory. Production runs on audited partner lines in China that hold ISO 9001 certification and ARC-certified standard designs; we handle engineering review, sampling, QC and logistics, and remain your single accountable contact.
Can you customize size, chip, printing and encoding?
Yes — size, chip (Impinj, NXP, Alien and more), face material, adhesive, printing and EPC/TID encoding are all customizable. A custom antenna design typically takes 3 working days.
How is quality controlled?
Partner lines run CCD vision inspection on every roll, Voyantic RFID performance testing, and 100% read verification after encoding, under an ISO 9001 quality system. We release shipment only after QC data is confirmed.
