Jewelry UHF RFID label · 66×26 mm (RT-L132)
RT-L132

Validate this construction on your material with samples before a volume order.

Labels for Different Frequencies

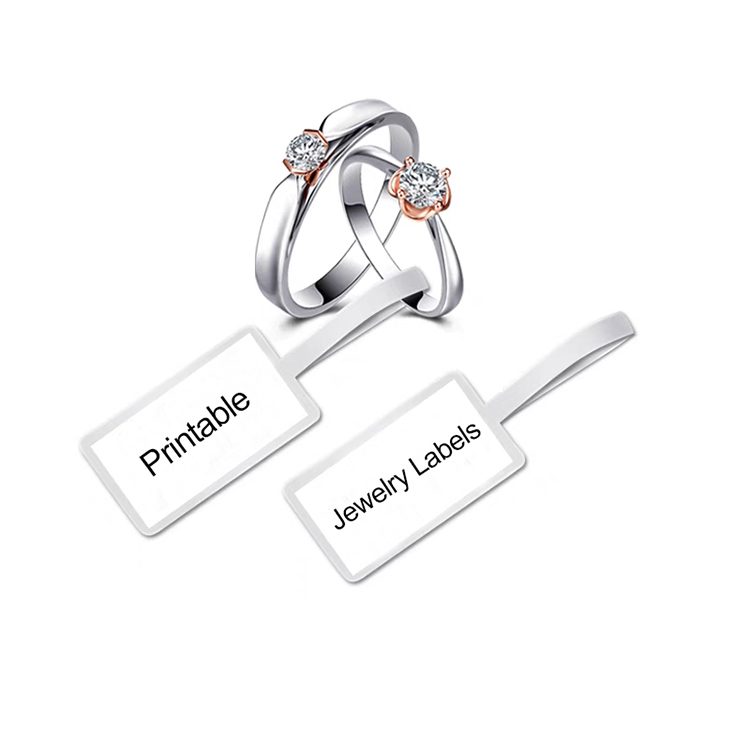

Jewelry UHF RFID label · 66×26 mm (RT-L132)

Built around the FM13UF0051E chip, this 66x26 mm white PET label brings UHF stock control to jewelry counters, opticians and luxury boutiques. It offers a 128-bit EPC and 32-bit user memory over ISO/IEC 18000-6C, prints cleanly by thermal transfer or silk screen, and its 42x11 mm antenna handles dense tray-by-tray reads.

At a glance

RFID Chip
FM13UF0051E
Label Size
66mm*26mm
Protocol
ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
Memory
128 bits EPC, 32 bit User Memory
Face Material
White PET
Product Model
RT-L132
Full specifications
Request a quote Request samples

Quote reply within 24 hours

Free samples — freight collect

Pricing matched to your project.

Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.

Supplied by Rivotag through partner production lines.

Technical information

Full specifications

Download specification summary

Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.

Overview

Product ModelRT-L132
RFID ChipFM13UF0051E
Label Size66mm*26mm
Antenna Size42mm*11mm
Face MaterialWhite PET
ProtocolISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
Memory128 bits EPC, 32 bit User Memory

Customized services Details

Customizable Label SizeYes
PrintingThermal transfer printing，Silk Screen Printing，and other custom printing.
Data initializationEncoding

Storage Environment Requirements

Operating Temperature/Humidity-0～60℃ / 20%～80% RH
Storage Temperature/Humidity20～30℃ / 20%～60% RH
Shelf Life1 year in anti-static bag at 20～30℃ / 20% ～60% RH
ESD Voltage Immunity2 kV (HBM)
Bending Diameter＞ 50mm
Other application environment requirementsYour environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days.
Applications
Jewelry management, glasses management, luxury goods management
Key Benefits
Fast reading,Multi-reading, Traceability

See it in action

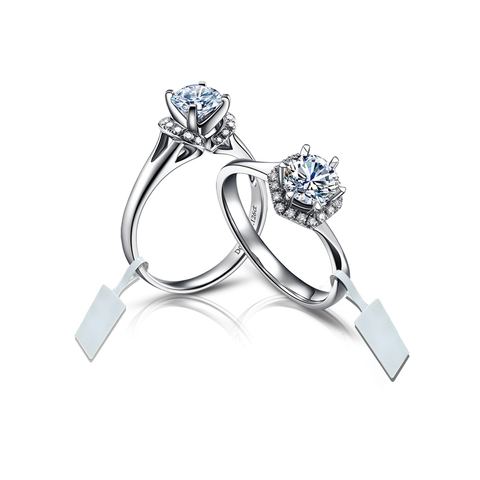

High-value stock demands frequent counting, yet handling is exactly what jewelers try to minimise. This 66x26 mm label squares that circle: applied as a slim white PET tail around each piece, it lets a handheld reader confirm an entire counter of rings, watches or frames in moments — hands off, cases closed.

The FM13UF0051E chip provides a 128-bit EPC block plus 32 bits of user memory for internal codes, communicating over ISO/IEC 18000-6C (EPCglobal Class 1 Gen 2) through a 42x11 mm antenna. The PET face takes fine thermal-transfer print — SKU, carat, price — and stays legible despite polish cloths and fingertips. Service temperature runs 0 to 60 °C.

Ordering & customization

Order it as-is, or have us adjust size, chip, face material and printing; EPC/TID encoding can be preloaded so tags arrive shelf-ready. Free samples leave within 3-5 working days on a freight-collect basis, production completes 7-15 days after artwork approval on ISO 9001 partner lines, and quotes come back within 24 hours.

Ordering this product

Sampling, quotations and supply through Rivotag.

How fast will I get a quotation?
We reply to every enquiry within 24 hours with a specific recommendation — chip, antenna, face material and adhesive — plus tiered unit pricing for the quantities you request.
Can I get samples before ordering?
Yes. Samples are free of charge (freight collect) and dispatched within 3–5 working days, so you can verify read performance on your own material before committing to production.
What is the production lead time?
Mass production typically ships in 7–15 days after artwork approval. Our partner factories run 30+ production lines with a combined capacity of about 1.5 billion tags per year.
Are you the manufacturer?
We are an independent supplier, not the factory. Production runs on audited partner lines in China that hold ISO 9001 certification and ARC-certified standard designs; we handle engineering review, sampling, QC and logistics, and remain your single accountable contact.
Can you customize size, chip, printing and encoding?
Yes — size, chip (Impinj, NXP, Alien and more), face material, adhesive, printing and EPC/TID encoding are all customizable. A custom antenna design typically takes 3 working days.
How is quality controlled?
Partner lines run CCD vision inspection on every roll, Voyantic RFID performance testing, and 100% read verification after encoding, under an ISO 9001 quality system. We release shipment only after QC data is confirmed.
