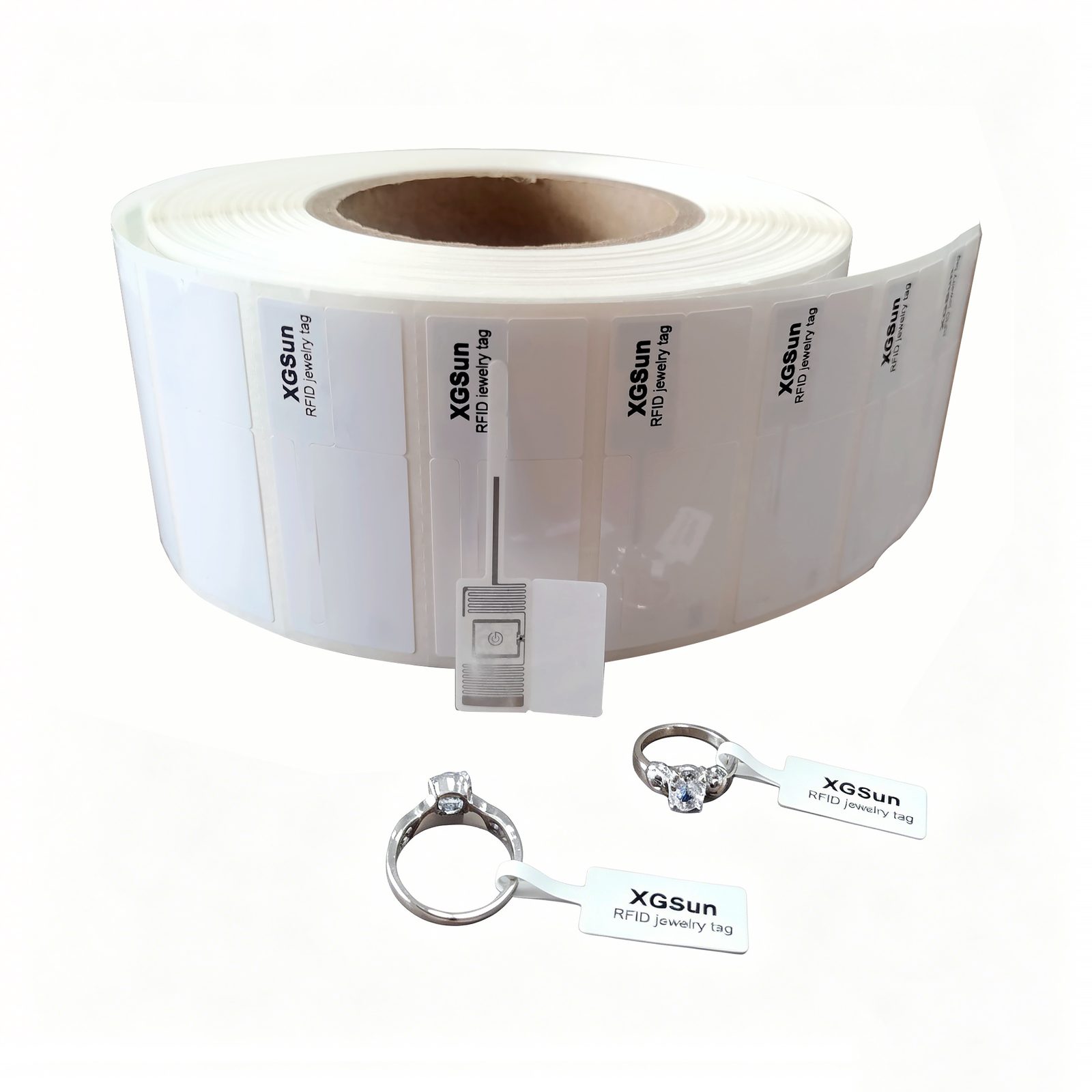

Jewelry UHF RFID tag · 66×26 mm · Qstar-7U (RT-L124)
The tail-style tag jewelers reach for: 66×26 mm of waterproof white PET that folds around necklaces, rings and earrings without scratching them, leaving a compact 25×13 mm printed head. Driven by the Qstar-7U chip with 128-bit EPC, 128-bit user memory, -17 dBm sensitivity and roughly 4 m read range under EPCglobal Class 1 Gen 2.
At a glance
- RFID Chip
- Qstar-7U (Can be customized)
- Label Size
- 66mm*26mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 128 bits EPC, 128 bits User Memory
- Face Material
- White PET
- Product Model
- RT-L124
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product Model | RT-L124 |
|---|---|
| RFID Chip | Qstar-7U (Can be customized) |
| Label Size | 66mm*26mm |
| Antenna Size | 42mm*11mm |
| Face Material | White PET |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 128 bits EPC, 128 bits User Memory |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |

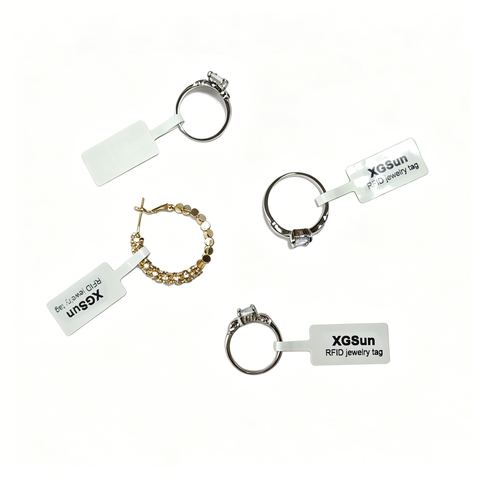

Counting a jewelry showcase used to mean opening it. With this tail tag looped onto every piece, a reader pass over the closed case returns the full inventory — each necklace, ring and earring answering with its own 128-bit EPC. A further 128 bits of user memory hold price codes, purity marks or provenance references.
Physically, the tag is engineered around the merchandise. Waterproof white PET, thin and light, wraps without abrading metal or stones, and the folded head presents just 25×13 mm of printable surface — enough for a barcode at 600 dpi. The Qstar-7U chip reads at -17 dBm sensitivity out to roughly 4 meters over ISO/IEC 18000-6C / EPCglobal Class 1 Gen 2.
Ordering and customization
Sourced through ISO 9001-certified partner lines, the tag is customizable in chip, size, face material, printing and EPC/TID encoding. Rivotag answers quotes within 24 hours, sends free samples freight collect in 3–5 working days, and completes production 7–15 days after artwork approval.
Ordering this product
Sampling, quotations and supply through Rivotag.
How fast will I get a quotation?
Can I get samples before ordering?
What is the production lead time?
Are you the manufacturer?
Can you customize size, chip, printing and encoding?
How is quality controlled?
