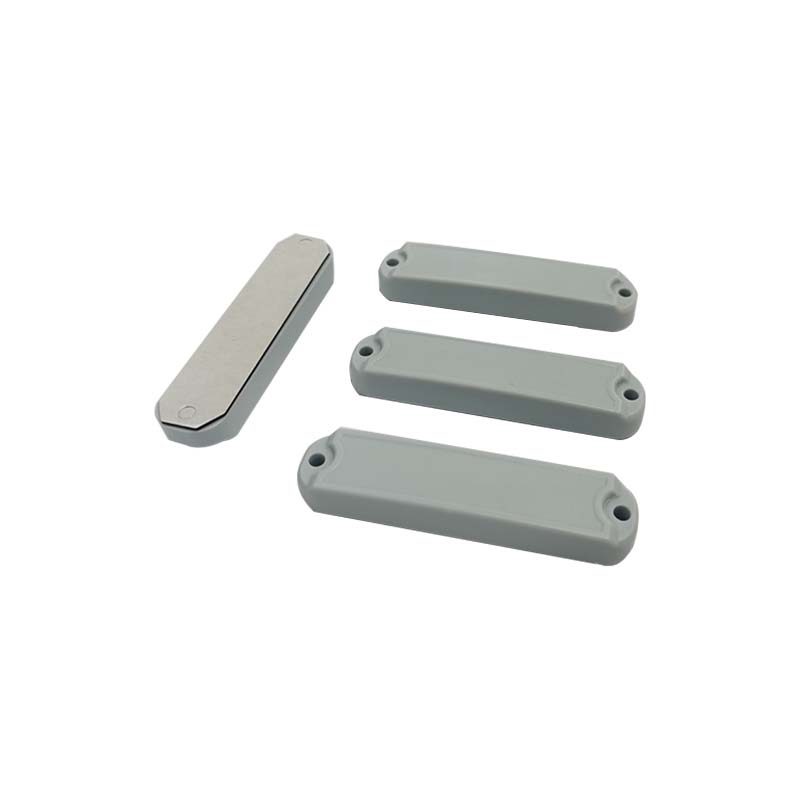

On Metal UHF RFID tag · 85×20 mm (RT-S129)
Injection-molded ABS tag built for equipment that lives outdoors or on the factory floor: IP68 sealed, -20 to 100 °C operating range, and mounted by screw or adhesive on metal, walls, wood or plastic. Inside, an Impinj M781 chip reads up to 6 meters on metal at 902–928 MHz and offers 512 bits of user memory.
At a glance
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- EPC 128 bits, User memory 512 bits
- Product Model
- RT-S129
- Frequency
- 902-928MHz
- IC Type
- Impinj M781
- Write Cycle
- 100,000 Times
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product Model | RT-S129 |
|---|---|
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Frequency | 902-928MHz |
| IC Type | Impinj M781 |
| Memory | EPC 128 bits, User memory 512 bits |
| Write Cycle | 100,000 Times |
| Functionality | Write/ Read |
| Applicable Surface | Metal Surfaces |
| Read Range(fixed reader) | Up to 6m-(US)902-928 MHz, on metal, 2WERP |
| Personalized customization | Encoding, printing text and barcodes, Color printing |
| Consistency test | 100% passed the Voyantic test |
Video
| Size | 85x20mm |
|---|---|
| Thickness | 11.5mm |
| Material | Aluminum + PET antenna, Face Material: ABS |
| Colour | White(Can be customized) |
| Mounting Methods | Adhesive or Screw |
| Weight | 10g |
| IP Rating | IP68 |
| Storage Temperature | -40～+150℃ |
| Operation Temperature | -20～+100℃ |
Some assets punish their tags — heat, moisture, knocks, pressure washing. This 85×20 mm ABS tag is molded for that reality: a hard injection-molded shell over an aluminum-and-PET antenna, sealed to IP68 and rated from -20 to 100 °C in service with storage tolerance to 150 °C. Fix it with adhesive or screws to metal, walls, wood or plastic and it stays put for years.
Performance comes from an Impinj M781 chip that reads up to 6 meters on metal with a fixed reader at 902–928 MHz (2 W ERP). Memory pairs a 128-bit EPC with 512 bits of user space, rewritable 100,000 times, and every batch passes Voyantic consistency testing. Encoding plus printed text, barcodes and color artwork are available for personalization.
Ordering and customization
Supplied through ISO 9001 partner lines, the tag can be adapted in color, printing and EPC/TID encoding to match your asset system. We answer quotes within 24 hours, send free samples freight collect in 3–5 working days, and complete mass production 7–15 days after artwork approval.
Ordering this product
Sampling, quotations and supply through Rivotag.
How fast will I get a quotation?
Can I get samples before ordering?
What is the production lead time?
Are you the manufacturer?
Can you customize size, chip, printing and encoding?
How is quality controlled?
