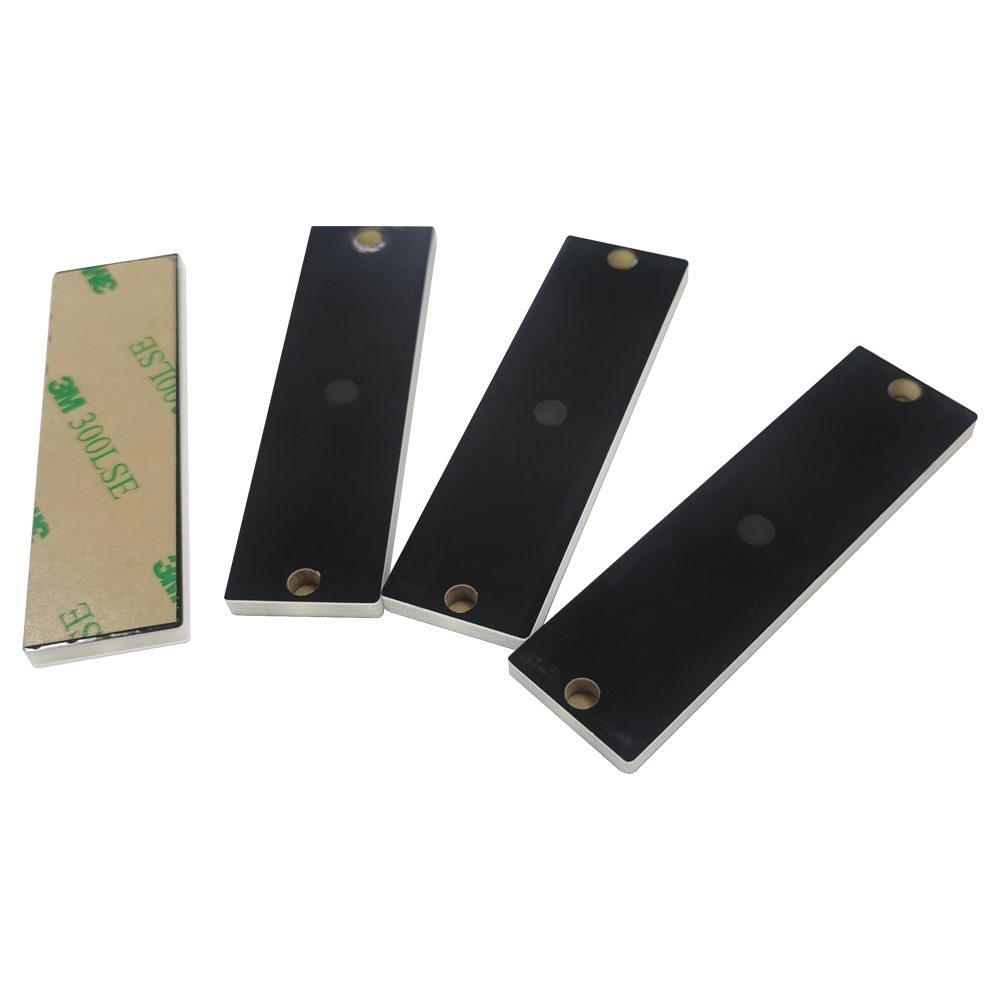

UHF flexible on-metal RFID label · 70×20 mm (RT-M107)
A slim FR4 (PCB) construction gives this 70×20 mm anti-metal tag its stiffness and durability at only 3 mm thick. The Impinj M781 chip reads up to 6 meters on metal at 902–928 MHz with a fixed reader, stores a 128-bit EPC plus 512-bit user memory, survives 100,000 write cycles, and the IP68 body runs from -20 to 100 °C.
At a glance
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- EPC 128 bits, User memory 512 bits
- Product Model
- RT-M107
- Frequency
- 902-928MHz
- IC Type
- Impinj M781
- Write Cycle
- 100,000 Times
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product Model | RT-M107 |
|---|---|
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Frequency | 902-928MHz |
| IC Type | Impinj M781 |
| Memory | EPC 128 bits, User memory 512 bits |
| Write Cycle | 100,000 Times |
| Functionality | Write/ Read |
| Applicable Surface | Metal Surfaces |
| Read Range(fixed reader) | Up to 6m-(US)902-928 MHz, on metal, 2WERP |
| Personalized customization | Encoding, printing text and barcodes, Color printing |
| Consistency test | 100% passed the Voyantic test |
Video
| Size | 70x20mm |
|---|---|
| Thickness | 3.0mm(Excluding chip bumps) |
| Material | FR4(PCB) |
| Colour | Black(Cab be customized) |
| Mounting Methods | Adhesive or Screw |
| Weight | 10.5g |
| IP Rating | IP68 |
| Storage Temperature | -40～+150℃ |
| Operation Temperature | -20～+100℃ |

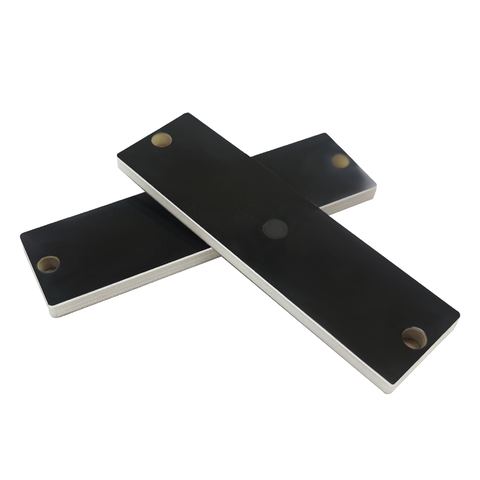

Printed circuit board substrate is an old trick for hard-wearing RFID: FR4 is rigid, dimensionally stable and indifferent to heat and chemicals. Here it forms a 70×20 mm anti-metal tag only 3 mm thick (excluding the chip bump), light at 10.5 g, finished in black with custom colors possible.
Mounted by adhesive or screws on machinery, racking or steel containers, the tag’s Impinj M781 chip returns reads from up to 6 meters on metal at 902–928 MHz with a fixed reader (2 W ERP). It rewrites through 100,000 cycles, holds a 128-bit EPC plus 512-bit user memory, and clears 100% Voyantic consistency testing. Sealing is IP68; operation spans -20 to 100 °C with storage tolerance to 150 °C.
Ordering and customization
We supply the tag from ISO 9001-certified partner lines, with encoding, printed text, barcodes and color finishes personalized per order. A quote reaches you within 24 hours; free samples (freight collect) leave in 3–5 working days, and production takes 7–15 days after artwork approval.
