RT-M108
Validate this construction on your material with samples before a volume order.
Retail UHF flexible on-metal RFID label · 60×30 mm · Impinj M730 (RT-M108)
An economical flag label that beats metal and liquid interference by design: the glued end anchors to the container top while the antenna section stands clear like a flag, sustaining reads of around 7 meters. Sized 60×30 mm on art paper, it runs an Impinj M730 with 96-bit EPC and 688-bit user memory — a fit for retail and unmanned beverage vending.
At a glance
- RFID Chip
- Impinj M730
- Label Size
- 60mm*30mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 48 bit TID, 96 bit EPC, 688 bit User Memory
- Face Material
- Art Paper
- Product Model
- RT-M108
Quote reply within 24 hours
Free samples — freight collect
Pricing matched to your project.
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product Model | RT-M108 |
|---|---|
| RFID Chip | Impinj M730 |
| Label Size | 60mm*30mm |
| Antenna Size | 40mm*20mm |
| Face Material | Art Paper |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 48 bit TID, 96 bit EPC, 688 bit User Memory |
| Applications | Retail management, Unmanned beverage vending machine management |
| Key Benefits | Metal-resistant,Fast reading,Multi-reading, Traceability |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |

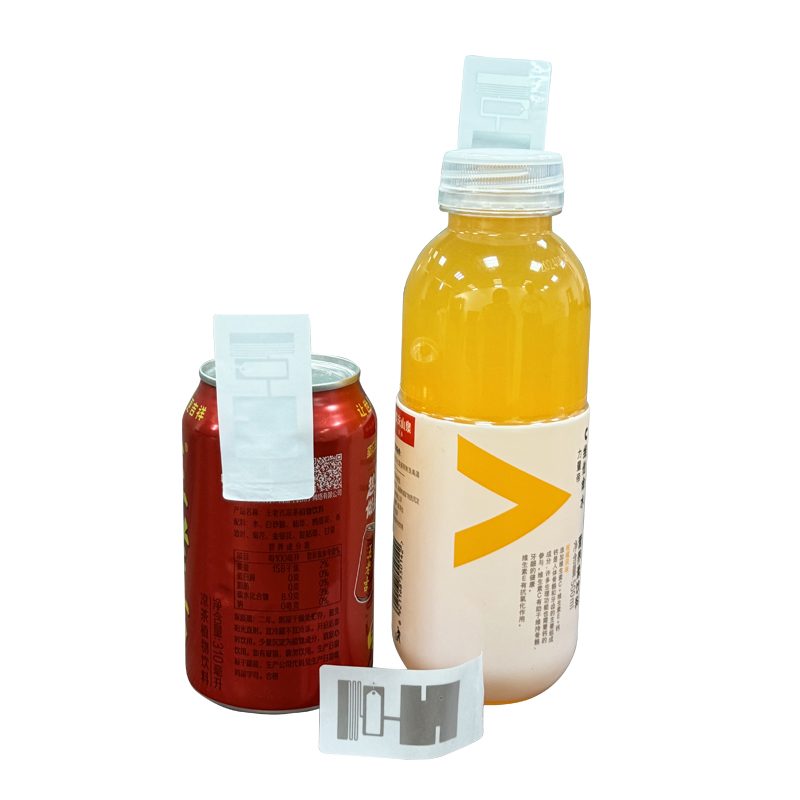

Cans and filled bottles are the two surfaces UHF likes least — one reflects the signal, the other absorbs it. The flag format sidesteps both. Stick this label’s adhesive section vertically on top of the container and the remaining portion stands free in the air, carrying its 40×20 mm antenna away from the interference below. Read distance holds at roughly 7 meters even on metal cans and liquid-filled drinks.
An Impinj M730 chip handles ISO/IEC 18000-6C / EPCglobal Class 1 Gen 2 communication with a 96-bit EPC, 48-bit TID and an unusually large 688-bit user memory for item data. The art paper face prints by thermal transfer or silk screen, and retail shelves and unmanned beverage vending machines are the format’s natural homes; operation is rated 0–60 °C.
Ordering and customization
Rivotag sources this label from ISO 9001 partner lines with chip, size, facestock, printing and EPC/TID encoding all adjustable. Quotes reply within 24 hours, free samples go freight collect in 3–5 working days, and production completes 7–15 days after artwork approval.
Ordering this product
Sampling, quotations and supply through Rivotag.
How fast will I get a quotation?
We reply to every enquiry within 24 hours with a specific recommendation — chip, antenna, face material and adhesive — plus tiered unit pricing for the quantities you request.
Can I get samples before ordering?
Yes. Samples are free of charge (freight collect) and dispatched within 3–5 working days, so you can verify read performance on your own material before committing to production.
What is the production lead time?
Mass production typically ships in 7–15 days after artwork approval. Our partner factories run 30+ production lines with a combined capacity of about 1.5 billion tags per year.
Are you the manufacturer?
We are an independent supplier, not the factory. Production runs on audited partner lines in China that hold ISO 9001 certification and ARC-certified standard designs; we handle engineering review, sampling, QC and logistics, and remain your single accountable contact.
Can you customize size, chip, printing and encoding?
Yes — size, chip (Impinj, NXP, Alien and more), face material, adhesive, printing and EPC/TID encoding are all customizable. A custom antenna design typically takes 3 working days.
How is quality controlled?
Partner lines run CCD vision inspection on every roll, Voyantic RFID performance testing, and 100% read verification after encoding, under an ISO 9001 quality system. We release shipment only after QC data is confirmed.
