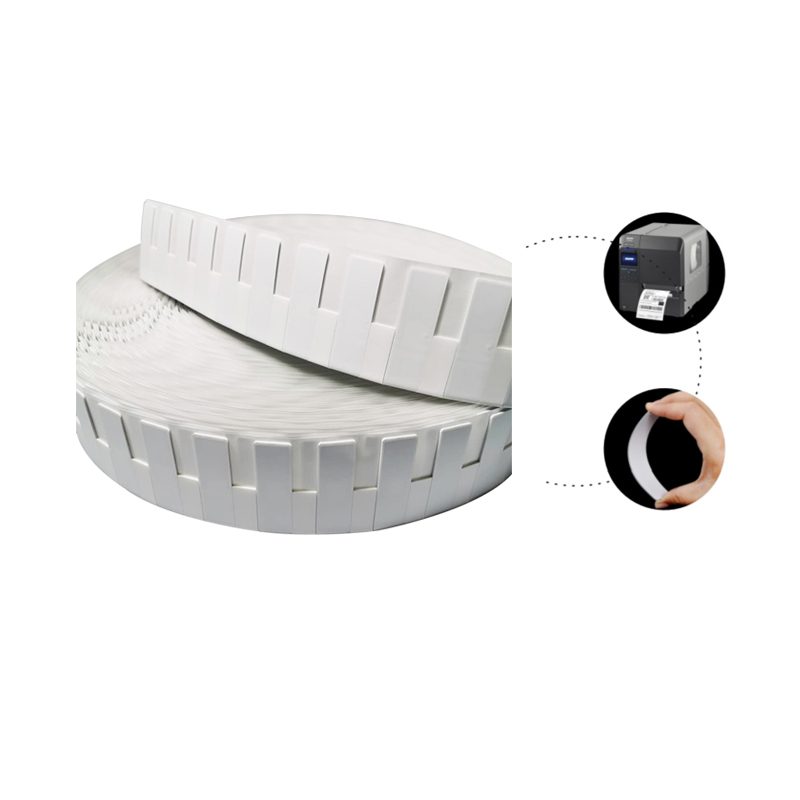

UHF flexible on-metal RFID label · 50×15 mm · NXP UCODE 8 (RT-M106)
A slim 50×15×1.26 mm flexible anti-metal label tuned for the European 866–868 MHz UHF band. On metal it reads to 4 meters, on plastic 3.5 m and on liquid 3 m; the UCODE 8 based design rewrites up to 100,000 times, passes 100% Voyantic conformance testing and operates from -40 to 85 °C — suited to asset, logistics and warehouse tagging.
At a glance
- RFID Chip
- ML050015(U8)
- Label Size
- 50mm*15mm*1.26mm( LxWxT)
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- EPC 128bits；User memory 0 bits
- Face Material
- PET
- Frequency range
- 866-868MHZ
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| RFID Chip | ML050015(U8) |
|---|---|
| Memory | EPC 128bits；User memory 0 bits |
| Label Size | 50mm*15mm*1.26mm( LxWxT) |
| Face Material | PET |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Frequency range | 866-868MHZ |
| Reading distance | 4/3.5/3 meters（on metal/on plastic/on liquid） |
| Re-writeable | 100000 times |
| Conformance test | 100% pass Voyantic test |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | print text , barcode and QR code, color printing |
| Printer | Sato SATO CL4NX, Boside TX3R, Zebra ZT410 Silverline, ect. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature | -40～85℃ |
|---|---|
| Storage Temperature | -40～85℃ |
European deployments run on the 866–868 MHz ETSI band, and this on-metal label was tuned for it from the start rather than adapted afterwards. The slim 50×15 mm footprint — just 1.26 mm thick — bends around curved metal surfaces such as pipes, housings and container walls, reading up to 4 meters on metal, 3.5 meters on plastic and 3 meters on liquid-filled items.
Built on an NXP UCODE 8 based design with a 128-bit EPC, the label complies with ISO/IEC 18000-6C / EPCglobal Class 1 Gen 2, endures roughly 100,000 rewrite cycles and ships only after 100% Voyantic conformance testing. Its PET face takes text, barcode, QR and color printing on standard industrial printers, and the -40 to 85 °C rating covers unheated warehouses and hot plant rooms alike.
Ordering and customization
Rivotag supplies this label from ISO 9001-audited partner lines. Size, chip, face material, printing and EPC/TID encoding can all be tailored; we quote within 24 hours, dispatch free samples freight collect in 3–5 working days, and finish mass production 7–15 days after artwork approval.
Ordering this product
Sampling, quotations and supply through Rivotag.
How fast will I get a quotation?
Can I get samples before ordering?
What is the production lead time?
Are you the manufacturer?
Can you customize size, chip, printing and encoding?
How is quality controlled?
